With over 30 years of hands-on restoration experience, StoneRestoreX specialises in repairing damaged brickwork, masonry and structural cracks using appropriate reinforcement and restoration techniques. Every repair is carried out with care and backed by our 2- year workmanship guarantee.
REAL STRUCTURAL CRACK REPAIR PROJECTS
Internal Wall Crack & Masonry Restoration – Reinforced Repair
HOW WE REPAIR STRUCTURAL CRACKS
Assessment
We examine the visible cracking, surrounding masonry and condition of the affected area to determine the appropriate repair approach.
Preparation
Loose, damaged or defective material is carefully removed and the masonry prepared for repair.
Stainless-Steel Reinforcement
Where appropriate, stainless-steel helical reinforcement is installed into suitable masonry joints to help stabilise the affected area.
Masonry Restoration
The damaged brickwork or masonry is repaired using appropriate materials and mortar.
Colour & Joint Matching
We carefully match the mortar colour, brickwork and joint profile wherever possible so the repair integrates with the existing building.
Finished Restoration
The repaired area is finished carefully, leaving the property looking restored rather than simply patched.
See examples of our specialist masonry and structural repair work, from initial damage through to the completed restoration.
Peckham Rye, London – Structural Brickwork & Bay Restoration
Structural Brickwork Restoration & Helibar Reinforcement in Peckham Rye, South East London
Structural Crack Repair — Complete Restoration Process
Structural Cracking Before Repair:
Severe structural cracking through an internal masonry wall, with vertical cracks extending through the finished surface.
This project demonstrates our complete approach to repairing significant masonry cracking, from opening up the damaged area and installing stainless-steel reinforcement through to rebuilding, plastering and finishing the wall.
The repair was carried out in carefully controlled stages to reinforce the affected masonry and create a durable, professional finish that blends into the surrounding existing wall.

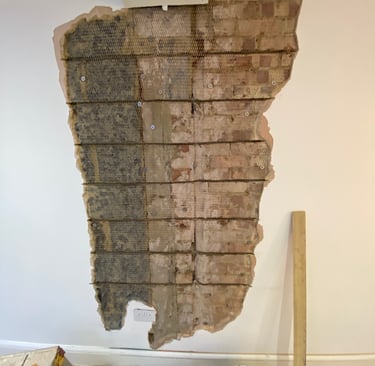

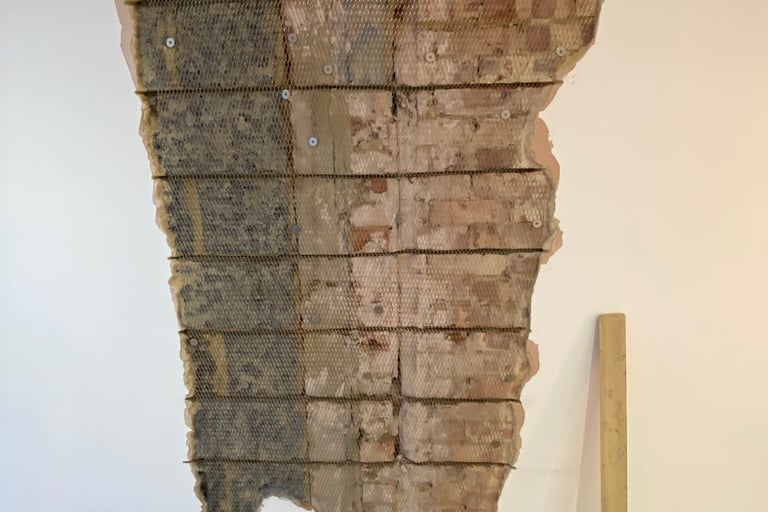

Stainless-Steel Helibar Reinforcement:
The damaged wall was opened up to expose the masonry and prepare the cracked block joints for reinforcement. Stainless-steel Helibars were installed into the prepared block joints and secured with specialist resin to provide additional reinforcement across the cracked area.

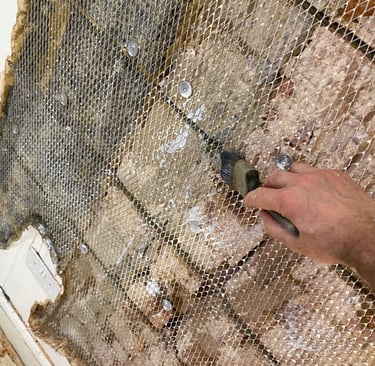

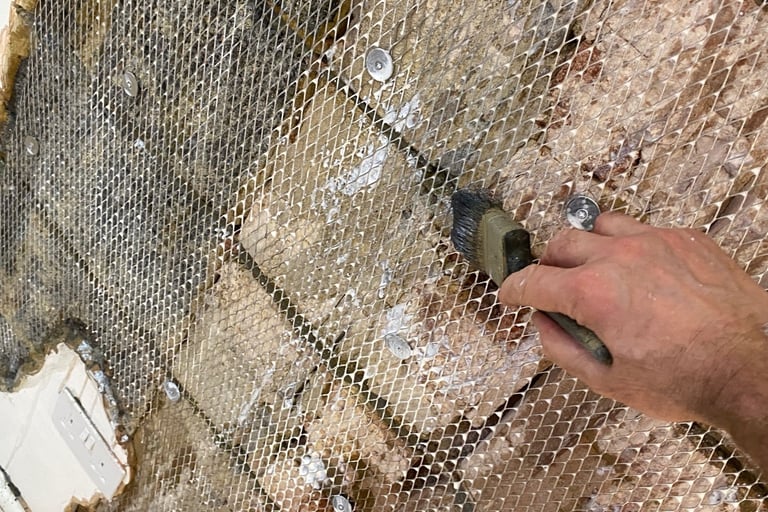

Stainless-Steel EML Mesh Reinforcement:
Stainless-steel EML mesh was mechanically fixed over the repaired wall using stainless-steel screws and washers. SBR bonding agent was then applied to prepare the reinforced surface for the strengthening render.
Sharp Sand Render Applied:
Sharp sand render was applied over the reinforced wall to strengthen and rebuild the repaired area, creating a sound base for the final plaster finish.
Multi Finish Plastering:
Multi Finish plaster was applied over the repaired section to create a smooth surface and carefully blend the repair into the surrounding existing wall.
The Result
The completed repair combines stainless-steel Helibar reinforcement, mechanically fixed stainless-steel EML mesh, specialist bonding treatment and a reinforced render build-up, followed by professional plastering and painting.
The repaired area has been carefully blended into the surrounding wall, leaving a clean and durable finish while preserving the appearance of the existing interior.
At StoneRestoreX, we focus on repairing the affected area properly rather than simply filling visible cracks. Every repair is assessed on its individual condition and carried out using appropriate materials and specialist restoration techniques.
Fully Finished & Painted
Completed structural crack repair, fully plastered and finished with Dulux interior paint. The repaired area has been blended into the existing wall for a clean, seamless finish.
Cracked Masonry Before Repair
Extensive cracking and open masonry joints visible to the brickwork around the bay window before repair. The damaged areas required reinforcement and careful restoration to stabilise and restore the affected masonry.
Stainless-Steel Helibar Reinforcement
Stainless-steel Helibars installed into prepared masonry joints across the cracked brickwork. The reinforcement was carefully positioned through the affected areas to provide additional strength before the brickwork was reinstated and finished.
Completed Bay Window Masonry Repair
Completed restoration of the bay window brickwork following Helibar reinforcement. The repaired masonry has been carefully finished and blended with the existing brickwork, restoring both the appearance and integrity of the affected area.
Bay Window Brickwork Crack Repair Helibar Reinforcement
This bay window required specialist masonry crack repair after significant cracking and deterioration had developed through the brickwork. The affected joints were carefully prepared and reinforced using stainless-steel Helibars before the masonry was reinstated and finished to blend with the existing brickwork.
The Result
The completed repair restored the affected bay window brickwork while retaining the appearance of the existing masonry. Stainless-steel Helibar reinforcement was incorporated into the prepared joints, followed by careful making-good and finishing to achieve a clean, sympathetic restoration.

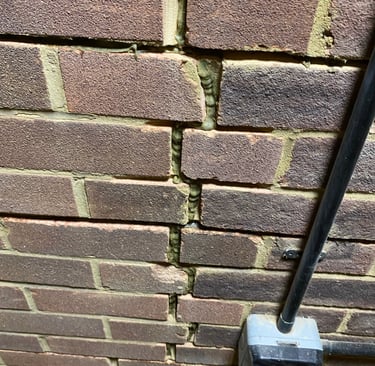

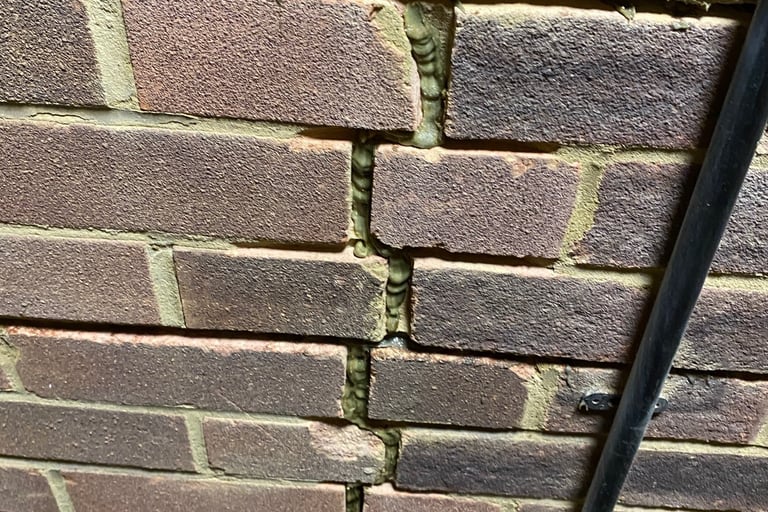

Bay Window Brickwork Crack Repair — Specialist Resin Injection & Brick Restoration
This section of the bay window had developed significant cracking through the brickwork, including deterioration around the arched masonry. The affected area was carefully repaired using specialist resin injection through the crack, followed by restoration of two damaged bricks, repointing and detailed colour matching to blend the repair seamlessly with the surrounding brickwork.
Stainless-Steel Helibar Reinforcement
Stainless-steel Helibars inserted into the prepared masonry joints across the cracked bay window brickwork as part of the structural crack repair.
Helibar Reinforcement Across Cracked Masonry
Stainless-steel Helibars positioned through the prepared masonry joints to reinforce the cracked section of the bay window before the repair was completed.
Completed Bay Window Brickwork Restoration
The completed bay window repair, including restoration of two damaged bricks, specialist crack reinforcement, repointing and detailed colour matching. The repaired area was carefully blended with the surrounding original brickwork for a natural, sympathetic finish.
The Result
The completed repair restored the damaged section of the bay window while retaining the character of the original brickwork.
Specialist resin was injected through the crack to reinforce the affected masonry, while two damaged bricks were carefully restored. The repaired areas were then repointed and colour matched to the existing brickwork and surrounding wall, helping the repair blend naturally into the original façade.
Experienced, Honest & Reliable
Over 30 years restoration experience
Honest advice — repair only what’s necessary
Clean, tidy and respectful on site
Fully guaranteed workmanship
Experienced with period and listed buildings
